Product Details:
Payment & Shipping Terms:
|
Automatic Grade:: | Automatic | Voltage:: | 220V/380, Customized |
---|---|---|---|
After-sales Service:: | Engineers Available To Service Machinery Overseas | Weight:: | 350KGS |
Packing Speed:: | 30-80 Bags/min | Applicable Film: | PET/AL/PE,PET/PE,OPP/CPP |
High Light: | liquid sachet packaging machine,liquid pouch packaging machine |

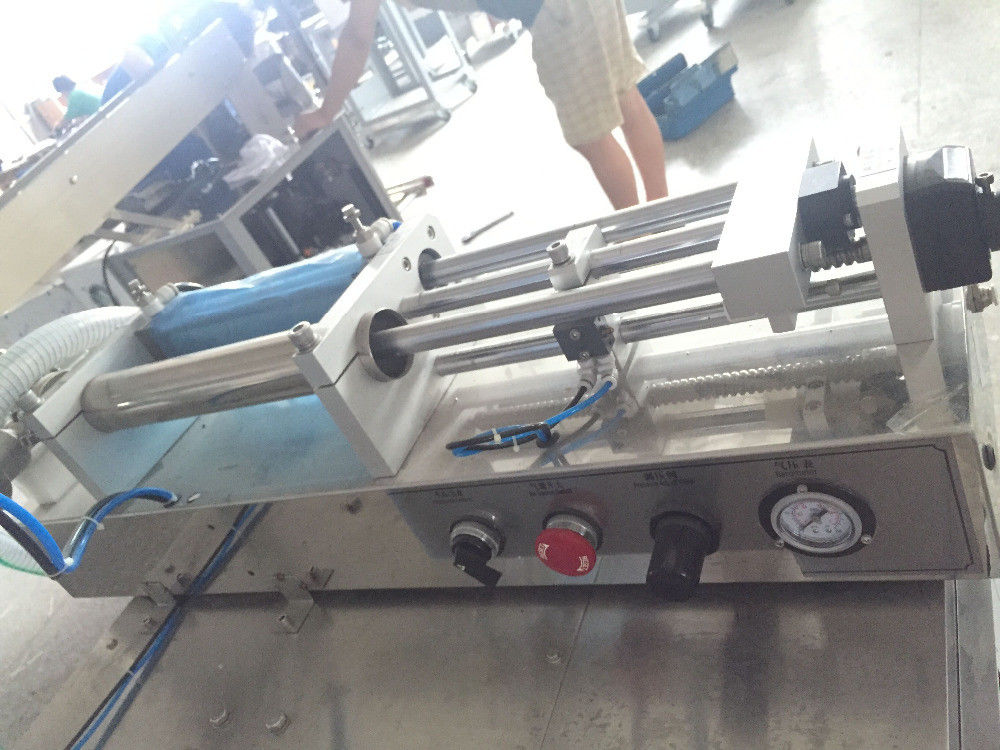

Pure Water Sachet Packaging Machine For Liquid Filling Sealing Price
Introduction:
Which is Recognized as a symbol of quality, high output, reality and simplicity. Easy and 30-100ml Small pouch can be made and moreover, any breakdown can be immediately located with consequential fast correction.Now let me introduce to you~
Advantages:
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have received the CE attestation.
2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.
3. Optional English or Chinese screen display, easy and simple operation.
4. Bag-making with précised technology enable the error less than ±o.5um.
5. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
6. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
7. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
8. Equipped with rolled cup device enables volume of packing changing anytime, loss reducing and improve productivity.
9. Alarming function for specific output; automatic display of packaging speed.
Technical Specification:
Model | DS-320Y |
Measuring | Metering Pump |
Sealing | Back seal,3/4 seal(optional) |
Cutting | Tooth cut/ Flat cut |
Measuring Range | 30~100ml |
Package Speed | 30~80bags/min |
Bag width | 50~100mm |
Bag Length | 40~200mm 80~300mm |
Film Width | 30~220mm |
Film Roll Dia. | 300mm |
Bag Pulling | Stepping motor |
Power | 220V,50HZ,1.2KVA |
Machine Size | (L)640×(W)700×(H)1580 |
Package Material | OPP/CPP.OPP/CE.MST/PE/PET/PE |
Machine Weight | 350KG |
Machine Package | Standard Export Plywood case |
Optional Device:
1. Linking bag device
2. Pouching device
3. Date Printer
4. Nitrogen Flushing device
