Product Details:
Payment & Shipping Terms:
|
| Line Length: | About 65m | Total Power: | About 80KW |
|---|---|---|---|
| Steam Use: | 2 000kgs/hour | Actual Size: | Design For Buyer |
| Compressed Air: | 0.8m³/h | Capacity: | 80000 Bags(70g)/8hours |
| Noodle Shape: | Square/Fried | Noodle Distance: | 152.4mm Mold Row |
| Noodle Block Size: | Determined By Buyer | Weight Error: | <= ±3% |
| High Light: | noodle making equipment,noodles manufacturing machine |
||
80 000 Cakes 400mm Roller Fried Bag Instant Noodle Production Line 70g Per Cake
Description
Automatic instant noodle processing line with new generation developed from overseas and domestic market.
It has high technology, compact structure, original design and stable performance.
Closed loop speed control system, speed feedback control and high precision pulse coder.
Whole line can be designed in synchronous control for running.
Easy adjustment and high precision synchronization is featured on whole line.
Whole line is in programmable logic controller (PLC), automatic control on process, motors on single machines adopt frequency speed control making excellent runnings.
Any special require on noodle line part, our factory can work out a plan for customizing.
From dough rolling to air cooling, main procedures use VVVF, photoelectric tracking, PLC program control and frying temperature controllable.
It has special characteristics on automation, big quantity, energy efficiency, compact structure, appearance, operation and maintain convenience etc.
It can realize mass production of bag instant noodle, bowl instant noodle, cup instant noodle and irregular long noodle while customizing for you.
Parameter Time
| Item | Time |
| Separate chute | 5-10 lines |
| Cutting ratation speed | 50- 60 R.P.M.(Adjusting) |
| Mixing | 12 minutes |
| Steaming | 80-90 seconds |
| Frying | 75-90 seconds |
| Cooling | 120-145 seconds |
Flow & Main Data

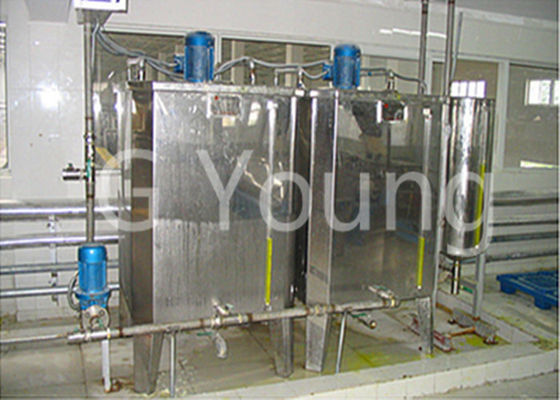

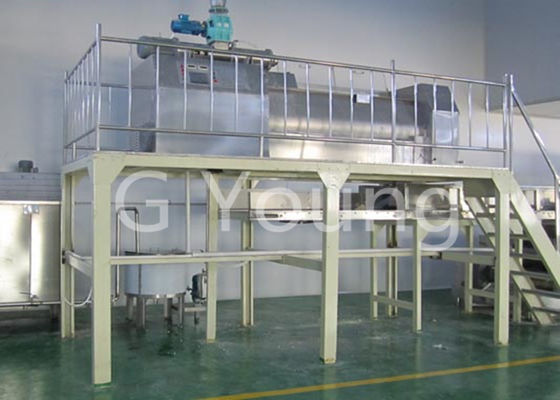

| Alkali mixing&measuring | Flour mixer | Feeder |
|
280 rotations/min Water adding time 1.5-2 min |
300kg Double shaft, horizontal Cylinderunloading,pneumatic |
Dia.2000 *410mm 3KW |
 |
|
|

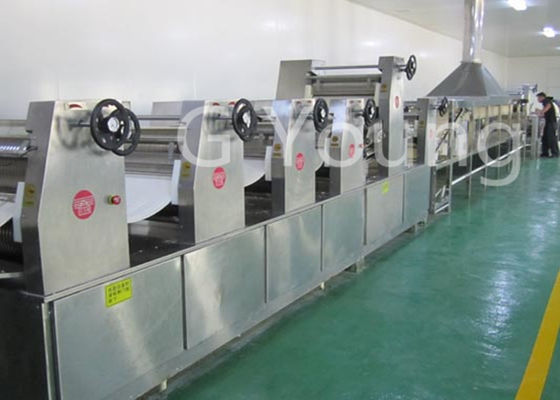

| Compound&Continuous roller | Cooking machine | Cutting/ Folding Dividing machines |
|
16.5kw Copper 7 groups, alloy steel |
2.2 KW 95-100 Degree |
4 divided into 8 rows 42-52 cuts/min (adjustable) |
|
|
|
| Frying machine | Cooling machine | Electric system |
|
(11+2.2)KW + 3 KW About 95 seconds |
1.5 KW Carbon steel About 90s SS430 |
BrandSchneider/Kaifeng/Tongli dough/rolling/steaming Controls |
|
|
|
Features
PLC control, high automation and easy operation.
Dough mixer machine is with double shafts speeds for optimal dough mixing effect.
Originative structure for single layer or multi-layer steaming machine keeping temperature proper.
High heat exchange rate in frying keeps no pollution on oil and lower content oil in noodles.
Non stopping machine to finely adjust dough weight.
The noodle line is with high automation, convenience, low energy consumption and less space occupation and investment.
Such features is can fully suitable to small sized or self owned enterprises.
The line is strength, smooth and transparent so as for easily saturated by water.
Our Service
Factory guarantee after sales service and technical supporting all time through.
1.Any request from customers within 24 hours, solving ways will be timely provided.
2.Products quality problems in factory’s responsibility, replacement and repairs will be timely given.
3.Quality, using and other related issues in quality, perfect on line system service will be given.
4.On line message feedback and directly form of mail or phone, making satisfactory solutions in shortest time for all customers.
5.Guarantee for one year and long time providing spare parts.
6.Overseas sending technicians for installations, training and operating etc.
7. Warranty service
