Product Details:
Payment & Shipping Terms:
|
| Capacity: | 14T/8H | Speed: | ≤60 Cuts/min |
|---|---|---|---|
| Cake Shape: | Double-layer Square | Power: | 415V/50Hz/～150KW |
| Length: | 110m-120m | PLC: | MITSUBISHI(JAPAN) |
| CONVERTER: | Siemens | THERMORELAY: | Schneider |
| Noodle Size: | Made As Require | Material: | SS/carbon Steel |
| High Light: | noodle making equipment,noodles manufacturing machine |
||
200 000 Cakes 800mm Roller Fried Bag Instant Noodle Production Line 50-100g / Cake
Description
Sophisticated process, compact structure, novel design, stable and reliable performance.
A complete production from the flour to the finished product by one time .
High automatic degree, simple operation, moderate production
Energy-saving, less premise, less investment, quick effect.
Suitable for small and middle enterprise.
Any special require on noodle line part, our factory can work out a plan for customizing.
From dough rolling to air cooling, main procedures use VVVF, photoelectric tracking, PLC program control and frying temperature controllable.
It has special characteristics on automation, big quantity, energy efficiency, compact structure, appearance, operation and maintain convenience etc.
It can realize mass production of bag instant noodle, bowl instant noodle, cup instant noodle and irregular long noodle while customizing for you.
Parameter Time
| Item | Time |
| Separate chute | 5-10 lines |
| Cutting ratation speed | 50- 60 R.P.M.(Adjusting) |
| Mixing | 12 minutes |
| Steaming | 80-90 seconds |
| Frying | 75-90 seconds |
| Cooling | 120-145 seconds |
Flow & Main Data
| Alkali mixing&measuring | Flour mixer | Feeder |
|
300kg/pot 1000L/unit×2 units |
manual/pneumatic length:2000mm |
Non-toxic polyester belt 0.75KW(frequency conversion timing)+1.5kw |
 |
|
|

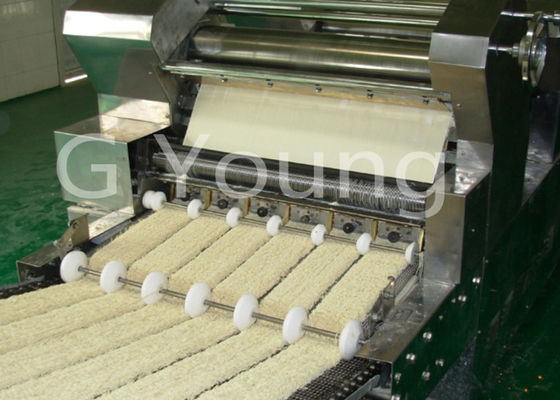

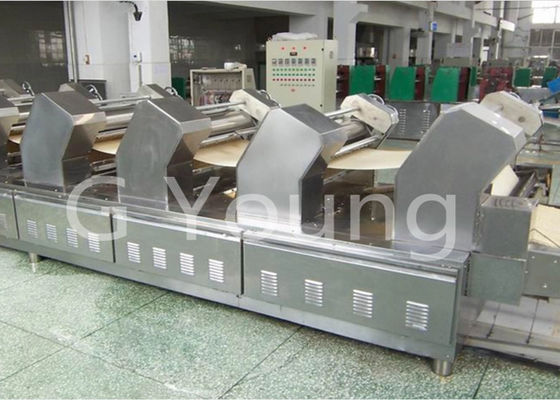

| Compound&Continuous roller | Cooking machine | Cutting/ Folding Dividing machines |
|
800mm,Dia: 395mm,300mm,300mm |
Steamed tank length:32m Nylon caster |
0.9kW×2units Cutting speed≤60 RPM//min |
|
|
|

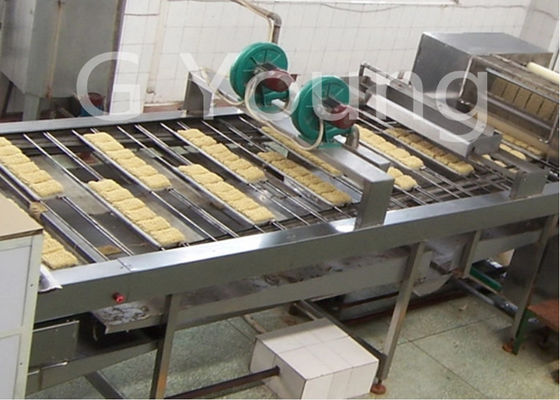

| Frying machine | Cooling machine | Electric system |
|
13.7m, Fried time: ～75s 120m2 horizontal heat exchanger |
Carbon steel:Scaffold body inlet air 0.37kWx12 units |
BrandSchneider/Kaifeng/Tongli dough/rolling/steaming Controls |
|
|
|
Features
PLC control, high automation and easy operation.
Dough mixer machine is with double shafts speeds for optimal dough mixing effect.
Originative structure for single layer or multi-layer steaming machine keeping temperature proper.
High heat exchange rate in frying keeps no pollution on oil and lower content oil in noodles.
Non stopping machine to finely adjust dough weight.
The noodle line is with high automation, convenience, low energy consumption and less space occupation and investment.
Such features is can fully suitable to small sized or self owned enterprises.
The line is strength, smooth and transparent so as for easily saturated by water.
Our Service
Factory guarantee after sales service and technical supporting all time through.
1.Any request from customers within 24 hours, solving ways will be timely provided.
2.Products quality problems in factory’s responsibility, replacement and repairs will be timely given.
3.Quality, using and other related issues in quality, perfect on line system service will be given.
4.On line message feedback and directly form of mail or phone, making satisfactory solutions in shortest time for all customers.
5.Guarantee for one year and long time providing spare parts.
6.Overseas sending technicians for installations, training and operating etc.
7. Warranty service
