Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Zhengzhou, Henan, China( Mainland) | Voltage: | Available Upon Request |
|---|---|---|---|
| Production Capacity: | 150000packs/8H | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Material: | Stainless Steel | ||
| High Light: | noodle making equipment,noodles manufacturing machine |
||

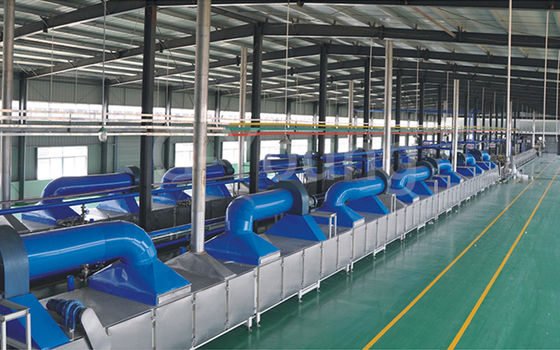

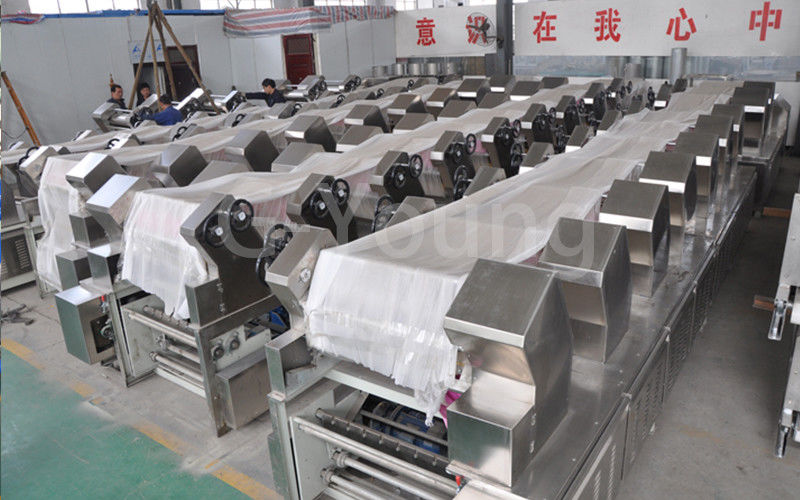

Oil Frying Instant Noodle Processing Machine Line With Low Noise
Description
Our main concern is to satisfy the needs of our customers at all times. This policy has made our company strive for innovation, quality and efficiency. An international vision and more than twenty years' experience ensure we have enough abilities to add more value to customers.
The fried instant noodles production line of WFP-Y series adopts advanced technologies and is of high automation, safety and easy maintenance.
The noodle machine has biaxial elliptic blades with two kinds of speed, as to make more water can be added as well as materials and moisture and more evenly combined. Curing machine adopts double-pot technique to guarantee for the consistency of dough ripening.
Advantage And Features Of Noodle Production Line
1 .High automation ,PLC controlled
2. High efficiency ,saving man power
3. Capacity: from 2.5-20tons per 8hours(based wheat flour consumption)
4. The machine can work separately or with production line.
5. Customers can adjust the size to meet with different needs.
6. It is environmental and healthy.
Flow Chart
| process flow | |
| 1. Flour storage | 10. Shaping |
| 2. Flour lifting | 11. Steaming |
| 3. Flour measuring | 12. Cutting |
| 4. Flour mixing | 13. Dividing |
| 5. Alkali mixing and measuring | 14. Fried |
| 6. Ripening | 15.Cooling |
| 7. Compound pressing | 16.Conveyor |
| 8. Curing | 17. Packing |
| 9. Continuous pressing | 18. Lifter |
Main Configuration
| Serial NO. | Product name | Model | quantity | Remark |
| 1 | alkali mixing and measuring | YSH10 | 1 unit | Power:0.75kw, volume:1200L/unit,the surface touched with the water is SS304 |
| 2 | double- speed flour mixing machine | HMJ200 | 1 unit | Motor power 9/11kw,300kg/batch,door opening by manual, the surface touched with flour is SS304 |
| 3 | Disk-type feeder | PS200 | 1 unit | Motor:4kw,tray size:φ1800mm×410mm the surface touched with flour is SS304 |
| 4 | Compound- continuous rolling machine | MT7-50 | 1 unit | Roll width:450mm,motor power:5.5kw+5.5kw(frequency conversion timing),8 pairs of steel roller-cold-hard alloy, frame (two sides)is SS201, the Dia. of the roller is:φ180mm×2,φ240mm×2,φ180 mm×2,φ162mm×1 |
| 5 | belt type cabinet | SX6 | 2 units | the surface touched with flour is S304,aluminum glass door Specification:750*850*1400mm,six roll of Noodle can be put in |
| 6 | Dehydration sterilization machine | TS800 | 1 unit | Main driven 1.5kw(frequency conversion timing),the length of body is 16 meters,surface touching food is SS 304, Heating power~20kw,fan0.55kw×6 |
| 7 | electrical control system | BPT-1 | 1 set | operation adopts frequency conversion timing |
Click
Noodle line running on youtube
Our Services:
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storage, worker’s restroom, etc.
2. After receiving firm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
