Product Details:
Payment & Shipping Terms:
|
| Material:: | Stainless Steel | Voltage:: | Available Upon Request |
|---|---|---|---|
| Performance: | High Efficiency | Productivity: | 7tons/8hour |
| Place Of Origin: | Henan, China (Mainland) | ||
| High Light: | noodle making equipment,noodles manufacturing machine |
||

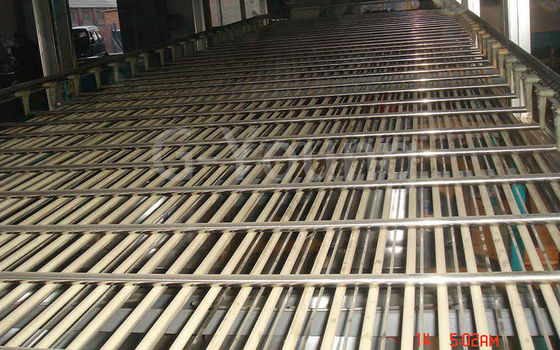

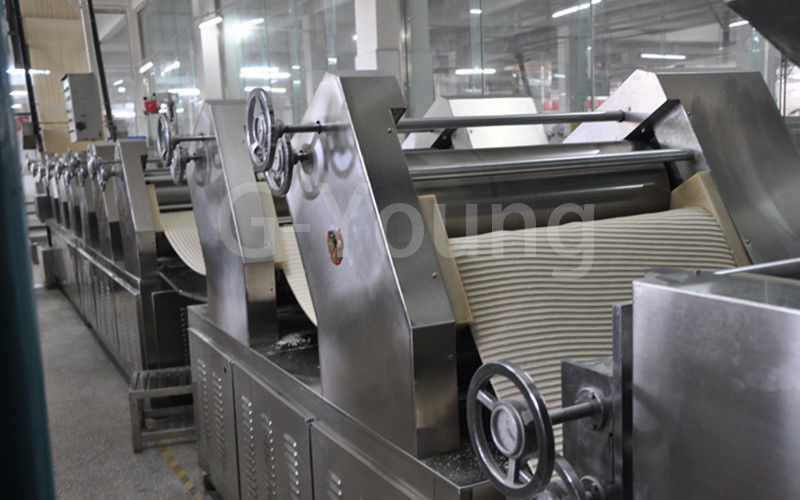

Low Noise Frying And Fried Noodle Making Equipment Production Line
Description
Production Line from flour to finished products automatically once completed, the high degree of automation, simple operation, moderate yield, energy saving, small footprint, The production line of instant noodles, rehydration time is short, good elasticity, smoothness and transparency, comparable with large market popular equipment.
The main process of the equipment using frequency control, photoelectric tracking, PLC program Control, to achieve a full range of synchronous coordination control, cut the number of knives, block weight can be reduced in the non-stop dynamic Whole, frying temperature control, and noodles using elliptical paddle two-axis two-speed technology to add more water, materials and moisture Combined with more uniform.
Instant Noodle Production Line
1. Modularized design,integral structure,easy to assemble and operate.
2. The whole line is managed by advanced controlling theory with high-performance PLC and speed driver.Stable performance and high level of automation.
3. The machine is approval of the national hygienic standards, it is very safe and healthy.
4. The machine can work separately or with production line.
5. Customers can adjust the size to meet with different needs.
Advantage Of the Noodle Production Line
1. The high automation can make sure that one man control several machines at the same time.
2. It is environmental and healthy.
3. Transfer the noodles automatically,cutting and hanging by itself;
4. One bundle of rods for hanging the noodles sent free together with noodle making machine;
| Mixing & Measuring device | Double speed flour mixing machine | Single sheet & continious rolling machine |
| 1.5kw,0.75kw,capacity1000L/unit; 140L with round tank, pump 0.75kw | 13/16kw,300kg/batch, the surface touched with flour is SS304 | 550mm, motor power:5.5+7.5=13kw,8 pairs of cold-hard alloy roller, |
|
|
 |
|
| Single layer steaming machine/cooking machine | Cutting & Folding& Dividing Machine | Frying and drying machine |
| 24m length,water airproof,Main drive 1.5kw, fan 0.37 kw*2units, | 1.5kw, cutter 0.9kw*2, 55 times/min,speed is adjustable, SS304 | 12m/10tray/0.8Mpa/200℃/1800L oil tank |
|
|
|
|
Our Services:
1. we will provide comprehensive planning programming and design service;
2. we will send an engineer to buyer's factory to install and test machines;
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year warranty, life time maintenance with cost price.
* Free easy broken spare parts will be sent with container .
* First installation can be guided by engineer.
* Training workers in customer’s factory.
