Product Details:
Payment & Shipping Terms:
|
| Energy: | Electricity Diesel Steam Gas | Voltage: | Available Upon Request |
|---|---|---|---|
| Feature: | High Automatic, PLC Control | Certification: | CE, ISO |
| Type: | Noodle | Material: | Stainless Steel |
| Usage: | Food Processing Industry | ||
| High Light: | noodle making equipment,noodles manufacturing machine |
||

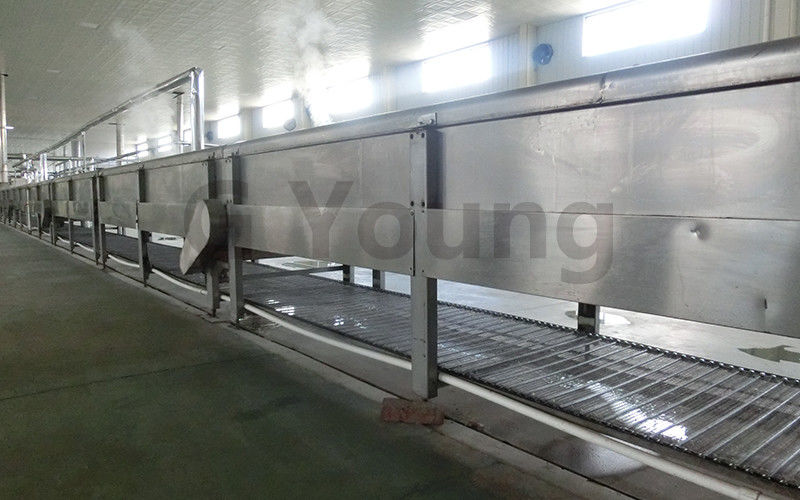

High Tech Fully Automatic Noodles Making Machine & Fried Noodles Production Line
Description
Automatic fried instant noodle production line of BFP-Y with perfect technology, compact structure, original design and stable performance, Instant noodles process line is developed on the base of advanced products and requirements in the world market.
It realizes high automation, convenient operation, low energy and small floor space, that assures all working procedures from feeding flour to finished products can be accomplished once. Production from flour to finished products automatically once completed,the high degree of automation,simple operation,moderate yield,energy saving,small footprint.
Main configuration
| Serial NO. | Product name | Model | quantity | Remark |
| 1 | Alkali mixing and measuring | YSH10 | 1 unit | Power:0.75kw, volume:120L/unit, the surface touched with the water is SS304 |
| 2 | Double- speed flour mixing machine | HMJ200 | 1 unit | Motor power 9/11kw, 200kg/batch,door opening by manual, the surface touched with flour is SS304 |
| 3 | Disk-type feeder | PS200 | 1 unit | Motor:4kw,tray size:φ1800mm×410mm the surface touched with flour is SS304 |
| 4 | Compound- continuous rolling machine | MT7-50 | 1 unit | Roll width:350mm,motor power:5.5kw+5.5kw(frequency conversion timing),7 pairs of steel roller-cold-hard alloy, frame (two sides)is SS201,the Dia. of the roller is:φ180mm×2,φ240mm×2,φ180 mm×2,φ162mm×1 |
| 5 | Belt type cabinet | SX6 | 2 units | the surface touched with flour is S304,aluminum glass door Specification:750*850*1400mm,six roll of Noodle can be put in |
| 6 | Dehydration sterilization machine | TS800 | 1 unit | Main driven 1.5kw(frequency conversion timing),the length of body is 16 meters,surface touching food is SS 304,Heating power~20kw,fan0.55kw×6 |
| 7 | electrical control system | BPT-1 | 1 set | Operation adopts frequency conversion timing |
Features Of The Production Line
1. Automatic and standardization production
2. Multi-usage, product diversification
3. Low labor intensity, high yield, greatly reduces the product cost.
Advantages Of The Production Line
1. Superior quality with reasonable prices:
gyoung is ISO certified, quality assured, and priced reasonably. Machine specifications are customized to fit international markets and customer demands. All of machine parts, electronic components, and safety devices follow CE regulation.
2. Fully equipped test workplace:
In our test workplace, a wide range of flours, food additives, seasonings, fillings, are ready for on-site client testing to ensure the machine fits each client's final product requirements.
3. Our professional team:
Our specialized R&D teams are constantly developing new machines, effectively fabricating tailor-made machines, and working to improve machine quality. We can provide basic formula for produce the food etc.And help customer to produce new products according to customer’s formula.
Using
1. Please read the introductions and specifications of the machine before operation.
2. Please don’t leave the machine in its working time, and keep children away from the machine.
3. It’s forbidden to clean the main engine of the machine with water before or after operating, and avoid the water on the machine thus to prevent leakage of the electricity.
