| Automatic Grade:: | Automatic | Driven Type:: | Mechanical |
|---|---|---|---|
| Function:: | Filling, Sealing, Wrapping | Packaging Material:: | Plastic, Laminated Film |
| Power:: | 2.2KW | Conditon: | New Machine |
| Material: | Stainless Steel | ||
| High Light: | food packing machine,automatic pillow packing machine |
||

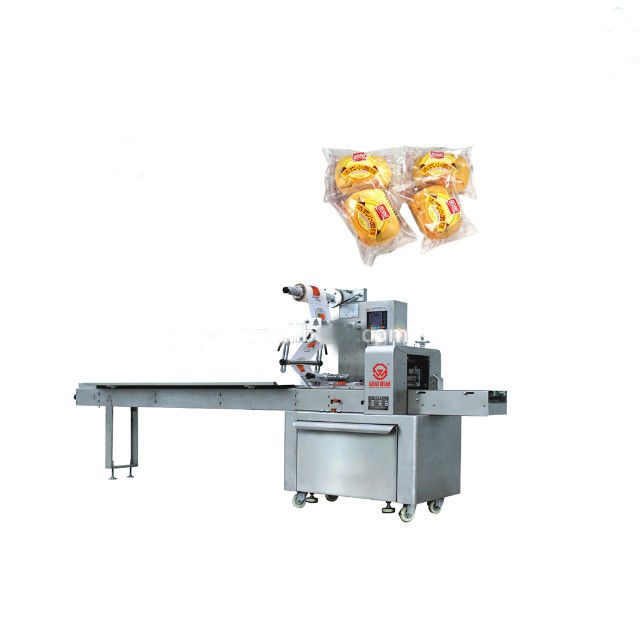

High Quality Bread Packing Machine Wrapping Equipment From Manufacturer
Description:
This machine is suitable for automatic packaging of instant noodles, biscuits, ice cream bar,snack, medicine, soaps, tissues, chocolate, frozen food, adhesive tape, industrial parts, etc.
It has advantage of high packing efficiency and good quality. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each station automatically, so that once something unexpected happen, it will stop and display the reasons automatically, which can solve the troubules in time.
Product Description:
This flow packing machine is suitable for packing round bar products,puffed food etc
Production workflow:
Rotary Table Feeding -- Conveying -- Arranging -- Pillow Type Packing
| Model | SW-350A | SW-450A |
| Packing speed | 20-200 (bags/min) | 20-200 (bags/min) |
| Packing product size |
(L)40-140mm (W)30-80mm (H)5-30mm |
(L)40-240mm (W)80-200mm (H)10-50mm |
| Roll Film Width: | ≤350mm | ≤450mm |
| roll film dimension | Φ400mm*220 | |
| Voltage: | 220V 50/60Hz | |
| Total power | 3.7kw | 4.2kw |
| Heating Power | 2.5kw | 3.2kw |
| Gross weight | 500kg | 600kg |
| Outside dimensions | 3850*1300*1600mm | 4000*1250*1500mm |
