Product Details:
Payment & Shipping Terms:
|
Condition:: | New | Function:: | Filling, Sealing, Wrapping |
---|---|---|---|
Packaging Material:: | Plastic PE,PP | Voltage:: | 220V |
Power:: | 2.2KW | Conditon: | New Machine |
Material: | Stainless Steel | ||
High Light: | instant noodle packaging machine,food packing machine |

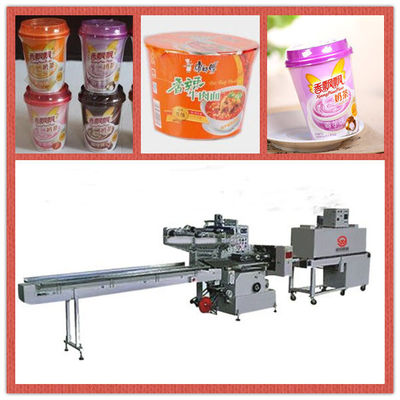

Multi Function Heat Shrinkage Film Pillow Packing Machine For Instant Noodle
Description:
This machine is suitable for automatic packaging of instant noodles, biscuits, ice cream bar,snack, medicine, soaps, tissues, chocolate, frozen food, adhesive tape, industrial parts, etc.
It has advantage of high packing efficiency and good quality. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each station automatically, so that once something unexpected happen, it will stop and display the reasons automatically, which can solve the troubules in time.
Main technical data:
Capacity: 50 to 200 packs/minute
Product size limits:
Length: 70 to 400mm, Width: 30 to 150mm, Height: 5 to 88mm
Floor space (L x W x H): 5,400 x 1,020 x 1,710mm
Power consumption: 4.3 kW, single phase 220V, 50Hz
Mechanical Features:
1. AC motor equipped on the inverter, speed can be dynamically regulated when machine runs
2. The shrink stove is equipped with efficient dual-temperature area, controlling the temperature automatically.
3. Efficient hot wind recycle, assure the shrink quality.
Electrical Features:
1. Digital servo motor control system
2. Operating status can be displayed and parameters can be set through touch screen
3. Frequency control, convenient, accurate and reliable
4. Eye mark can be positioned and tracked automatically
5. Length of packing bag can be measured and memorized automatically
