Product Details:
Payment & Shipping Terms:
|
| Capacity:: | 5~500g | Color:: | Stainless Steel Color |
|---|---|---|---|
| Application:: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Automatic Grade:: | Automatic |
| Packaging Material:: | Wood | Applicable Material: | PET/AL/PE 、 PET/PE、 OPP/CPP |
| High Light: | powder sachet packing machine,chilli powder packing machine |
||

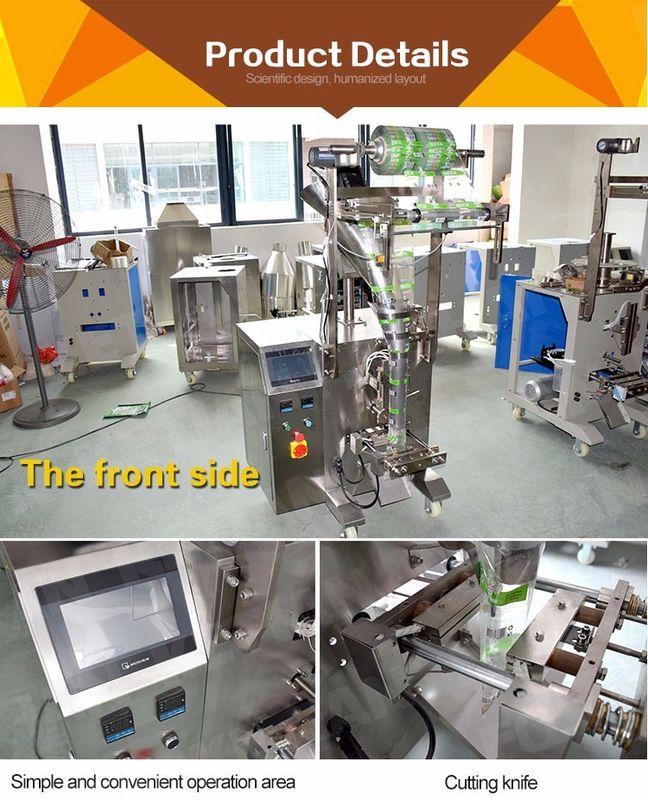

High Accuracy Milk/Sachet/Flour Powder Filler Pack Bag Machine
Main Features
1. With the function auto filling, measuring, bag forming, code printing, sealing and cutting. Bag making system adopts step motor with high precision
2. Touch screen adopts Chinese or English display, can see the working conditions directly.
3. With intelligent photoelectric controller system.
4. Fully 304/316 stainless steel frame body.
5. Stainless steel water/sauce pump filling structure, high accuracy.
6. Good visibility with side-open protective platens, operate safely.
7. Adopt the newest hopper sets, easy to adjust and clean, no need adjust again after clean, so that can efficiently improves the production.
8. This machine is suitable for the packing of powder products, bag can choose from 3-side or 4-side seal or back seal according to customer needs.
Specification:
|
MODEL NAME:
|
BSP-L300F
|
|
Type
|
Screw Filling + Automatic Sealing Packing Machine
|
|
Bag length
|
80-400mm(L)
|
|
Bag width
|
40-140mm(W)
|
|
Max. width of film
|
300mm
|
|
Packing speed
|
25-80bags/min
|
|
Measuring range
|
500g(Max)
|
|
Air pressure
|
0.65Mpa
|
|
Gas consumption
|
0.4m³/min
|
|
Power voltage
|
220VAC/50HZ
|
|
Power
|
1.5kw
|
|
Dimension
|
(L)1150×(W)1795×(H)1650mm
|
|
Weight of machine
|
300KG
|
