Product Details:
Payment & Shipping Terms:
|
| Type:: | Other | Packaging Type:: | Film |
|---|---|---|---|
| Packaging Material:: | Plastic PE,PP | Voltage:: | 220V |
| Power:: | 2.2KW | Conditon: | New Machine |
| Material: | Stainless Steel | ||
| High Light: | instant noodle packaging machine,food packing machine |
||

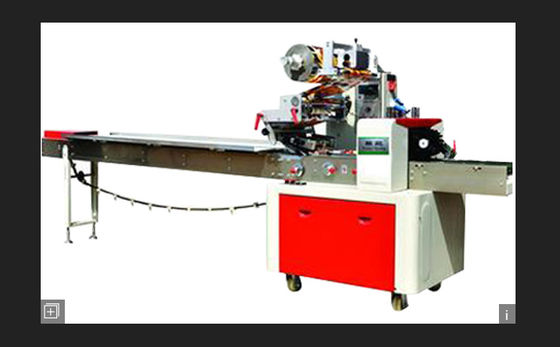

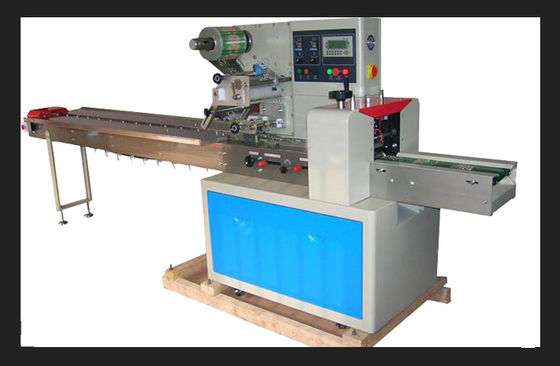

Stainless Steel Automatic Wheat Flour Noodle Packing Machine Equipment
Description:
It has advantage of high packing efficiency and good quality. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each station automatically, so that once something unexpected happen, it will stop and display the reasons automatically, which can solve the troubules in time.
Main technical data:
Capacity: 50 to 200 packs/minute
Product size limits:
Length: 70 to 400mm, Width: 30 to 150mm, Height: 5 to 88mm
Floor space (L x W x H): 5,400 x 1,020 x 1,710mm
Power consumption: 4.3 kW, single phase 220V, 50Hz
Mechanical Features:
1. Double-drive vertical sealer of automatic open-close structure
2. Center height of the end sealer can be adjusted to adapt the height of packing items
3. Feeding position can be adjusted at any time during operation
Electrical Features:
1. Digital servo motor control system
2. Operating status can be displayed and parameters can be set through touch screen
3. Frequency control, convenient, accurate and reliable
4. Eye mark can be positioned and tracked automatically
5. Length of packing bag can be measured and memorized automatically
