Product Details:
Payment & Shipping Terms:
|
| Items: | Content | Frame Material:: | SS 304 |
|---|---|---|---|
| Machine Weight:: | 450kg | Driven Type: | Electric |
| Usage:: | Powder, Flour | Packaging Material:: | PE/PP |
| High Light: | powder bagging machine,powder sachet packaging machine |
||

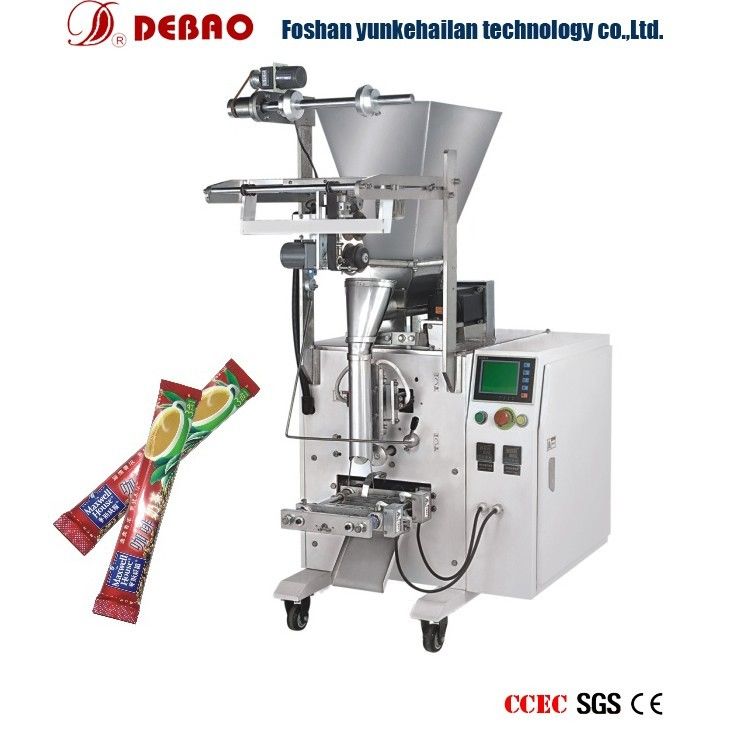

Small Sachet Powder Bag Packing Machine For Seasoning
Functional Description
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
7. Close down type mechanism , defending powder into inside of machine.
Specifications:
| Model | PW-110BW |
| Film width | Max.680mm |
| Bag length | 100~420mm |
| Bag width | 100~320mm |
| Film roll diameter | Max.680mm |
| Packaging speed | 5~60bag/min |
| Measuring range | 150~3500ml |
| Film thickness | 0.04~0.08mm |
| Power | 220V 50/60Hz 2.6Kw |
| Size | L1716*W1260*H1820mm |
| Net weight | 700kg |
