| Pouch Length: | 45-180mm | Pouch Width: | 30-95mm |
|---|---|---|---|
| Capacity: | According To The Proportion Of Each Sauce | Packing Speed: | 40-120P/m |
| Dimension: | L1400mm*W1000mm*H1800mm | Applicable Film: | PET/AL/PE,PET/PE,OPP/CPP |
| High Light: | liquid sachet packaging machine,tomato sauce packaging machine |
||

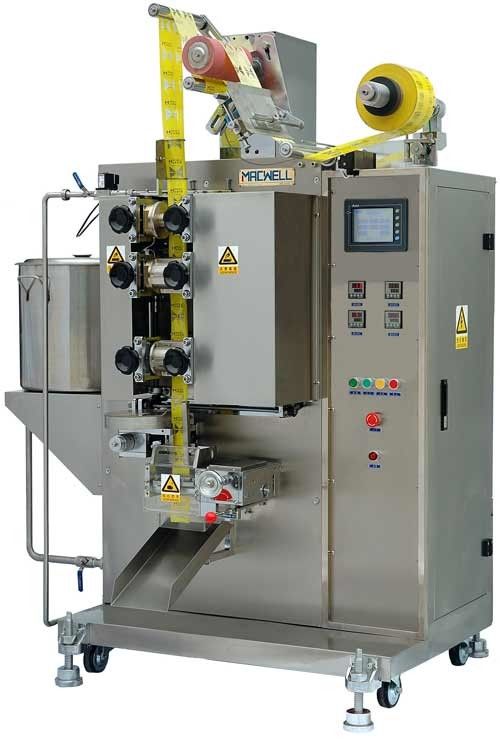

Automatic Single Oil Seasoning Packing Machine
Introduction:
PW-239FPM is a 3 or 4 sides sealing automatic packing machine for filling and packing viscidity and liquid,with three sets of roller. It can make out the twin oil & sauce packing. The machine is equipped with one set of vertical heating roller, one set of horizontal heating roller and one set of cold sealing roller. The vertical sealing roller is completed, continuous chessboard vein with leak-resistant line. The horizontal sealing roller is chessboard vein with leak-resistant line or plain sealing with leak- resistant line. The filling device is Magnetic pump (M) which applicable for liquid and Piston pump (P) that applicable for viscous material. There is zigzag cutter with easy-tear device.
Advantage:
* The machine is controlled by PLC, with touch screen showing the running state.
* Inverter driven vertical sealing device, makes it possible to change the speed limitless within a certain range.
* Inverter driven horizontal sealing device, adjusts the pouch length limitless, and pouch length can be set up on the touch-screen, as is easy and convenient.
* With intelligent photo-eye control system, the first pouch can be located automatically, and the interruption.
information of the incorrect design can be excluded.
* The effect of the film tensile force change can be eliminated.
* Intelligent temperature control.
Main Datas:
Item Content Remarks
Pouch Length 45~180mm The appointed length +/-40mm
Pouch Width
Three sides sealing: 30～95mm; Four sides sealing:35~100mm
Replace bag former when bag width changed
Capacity 0.5~24ml, 3~65ml,5~107ml(Piston Pump); Choose one out of four
Packing Speed 40～12p/m Depends on the product and packing specification
Electric Power 3kw / AC380V or so
Dimension L1400mm× W1000mm×H1800mm
Weight 450kg or so
Applicable Film PET/AL/PE, PET/PE, OPP/CPP
Parameter of Film
Outer Dimension of Film ≤400；Inner Dimension of Film φ75
Standard Feeding Device Piston Pump (P)
Standard Cutting Device Zigzag Cutter
